1. Motivation and Background

Click-through rate (CTR) prediction is the core inference task in online advertising: given a user context and an ad candidate, estimate \(p(\text{click} \mid \text{user}, \text{ad})\). The revenue implications are enormous; the US digital ad market reached $284.3B in 2021.

1.1 Limitations of Prior Ranking Architectures

The evolution of ranking models follows a rough trajectory:

1. Linear models (logistic regression): \(p = \sigma(\mathbf{w}^\top \mathbf{x})\). Cannot capture non-linear feature interactions.
2. Factorization Machines (FM): Model second-order interactions via latent embeddings, \(\hat{y} = w_0 + \sum_i w_i x_i + \sum_{i<j} \langle \mathbf{v}_i, \mathbf{v}_j \rangle x_i x_j\). Shallow; limited expressivity.
3. Deep FM / Wide & Deep / DCN / xDeepFM / AutoInt: Stack a deep neural network alongside or on top of an explicit interaction module to capture high-order interactions. These all share a common structural limitation: each model is built around a single type of interaction module, homogeneously stacked.

The paper identifies three concrete limitations of the homogeneous-stacking paradigm:

• Performance variance across datasets. Different interaction modules (claiming the same bounded interaction degree) achieve different rankings on different datasets, indicating that the information they capture is not identical.
• Diminishing or negative returns from depth. Empirically, stacking more layers of the same module can hurt performance (documented in DCN Figure 3, xDeepFM Figure 7a, InterHAt Figure 4, xDeepInt Table 2, GIN Figure 3a). This is theoretically surprising: higher-order interactions should be at least as expressive.
• No mechanism to capture module correlations. A homogeneous stack cannot learn how the outputs of different interaction types relate to one another.

1.2 The Non-Overlapping Information Hypothesis

The paper’s central hypothesis is:

Different interaction modules — even those designed to capture the same order of interaction — encode non-overlapping information about the feature space.

This motivates an ensemble of heterogeneous modules within each layer. Rather than depth alone yielding richer interactions, the combination of diverse module outputs yields complementary signal. The hierarchical stacking of such ensemble layers then compounds the benefit across orders.

2. Architecture Overview

DHEN follows the same high-level template as modern vision and NLP architectures (ResNet, Transformer, MetaFormer): a deep stacking structure where a repeating block processes inputs recursively. The novelty is that each block is not a single interaction module, but a hierarchical ensemble of heterogeneous interaction modules.

The full DHEN pipeline is:

\[\text{raw features} \;\longrightarrow\; \text{Feature Processing Layer} \;\longrightarrow\; \underbrace{[\text{DHEN Layer}] \;\times\; N}_{\text{hierarchical ensemble}} \;\longrightarrow\; \text{prediction head}\]

2.1 Feature Processing Layer

CTR inputs contain two feature types:

• Sparse (categorical) features: mapped via embedding lookup tables. Each categorical term is assigned a trainable \(d\)-dimensional vector.
• Dense (numerical) features: processed by a stack of MLP layers to produce a \(d\)-dimensional vector.

After concatenation, the output of the feature processing layer is:

\[X^0 = (x^0_1, x^0_2, \ldots, x^0_m) \in \mathbb{R}^{d \times m}\]

where \(m\) is the total number of output embedding slots (sparse lookups plus dense MLP outputs) and \(d\) is the embedding dimension. This representation \(X^0\) is the input to the first DHEN layer.

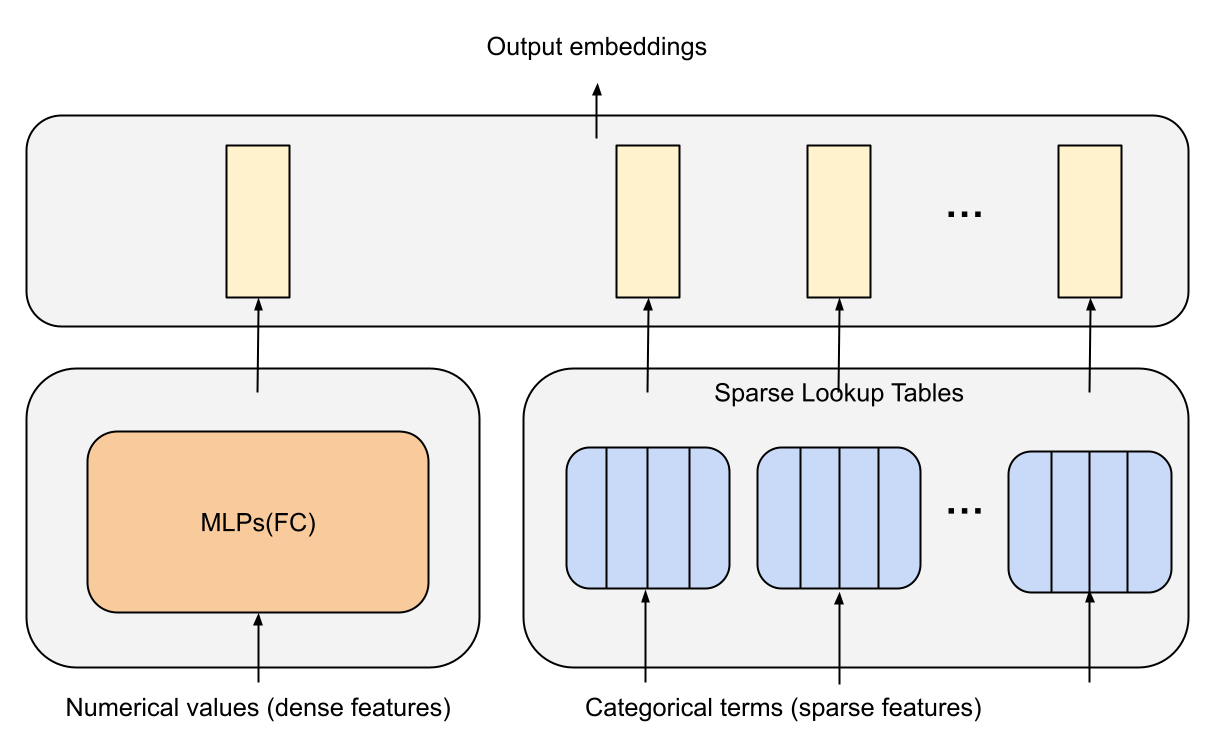

Figure 3 (Zhang et al., 2022): The feature processing layer in DHEN — sparse categorical features go through embedding lookup tables while dense numerical features go through MLP layers; outputs are concatenated to form \(X^0 \in \mathbb{R}^{d \times m}\).

2.2 The DHEN Layer: Formal Definition

Let \(X_n \in \mathbb{R}^{d \times m}\) denote the embedding matrix input to the \(n\)-th DHEN layer (with \(X_0 \equiv X^0\)). The output of a single DHEN layer is:

\[Y = \text{Norm}\!\left(\operatorname{Ensemble}_{i=1}^{k} \operatorname{Interaction}_i(X_n) + \operatorname{ShortCut}(X_n)\right) \tag{1}\]

where:

\[\operatorname{ShortCut}(X_n) = \begin{cases} X_n & \text{if } \operatorname{len}(X_n) = \operatorname{len}(Y) \\ W_n X_n & \text{if } \operatorname{len}(X_n) \neq \operatorname{len}(Y) \end{cases} \tag{2}\]

• \(\text{Norm}(\cdot)\) is layer normalization.
• \(\operatorname{Ensemble}_{i=1}^{k}\) denotes an aggregation function over \(k\) interaction module outputs; options include concatenation, sum, or weighted sum.
• \(W_n \in \mathbb{R}^{\operatorname{len}(X_n) \times \operatorname{len}(Y)}\) is a learned linear projection applied only when dimension mismatch occurs.
• The output \(Y\) becomes the input \(X_{n+1}\) to the next layer.

The shortcut plays a dual role: it acts as a residual shortcut (stabilizing gradient flow across depth) and as a dimension-matching projection.

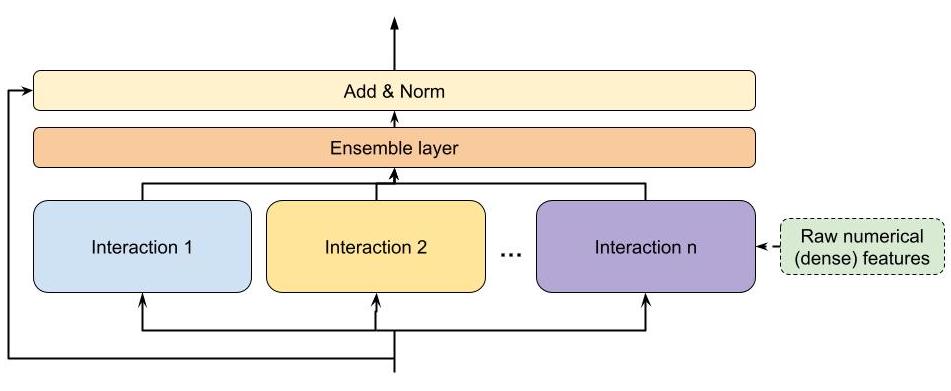

Figure 1 (Zhang et al., 2022): A general DHEN hierarchical ensemble building block. Multiple heterogeneous interaction modules run in parallel on the same input \(X_n\); their outputs are aggregated (ensemble), added to a residual shortcut from \(X_n\), and normalized to produce the next layer’s input \(X_{n+1}\).

[!SUCCESS]- Solution 1 Key insight: Concatenation aggregation forces the shortcut to apply a learned projection whenever \(kl \neq m\); tracking shapes explicitly at each step reveals exactly which operations require projection parameters.

Sketch:

1. Parameters for 2-layer DHEN (self-attention + linear, concat aggregation):

# Attention: W^Q, W^K, W^V each (d, d_k * h); W^O: (d_v * h, d)
# Linear: W_lin: (m, l)  -- maps embedding count m -> l
# Concatenation output per layer: d x (l_attn + l_lin) = d x 2l  (if l_attn = l_lin = l)
# Shortcut projection (if 2l != m): W_sc: (m, 2l)
# LayerNorm: gamma, beta: (d,) each
# Prediction head: W_head: (d * 2l, hidden), ...

2. One DHEN layer pseudocode (batch dim B suppressed):

def dhen_layer(Xn, params):
    # Xn: (B, d, m)
    u_attn = attention(Xn, W_Q, W_K, W_V, W_O)  # (B, d, l)
    u_lin  = linear(Xn, W_lin)                   # (B, d, l)
    ensemble = concat([u_attn, u_lin], dim=-1)   # (B, d, 2l)
    if 2l == m:
        shortcut = Xn                             # (B, d, m)
    else:
        shortcut = Xn @ W_sc                      # (B, d, 2l): W_sc (m, 2l)
    Y = LayerNorm(ensemble + shortcut)            # (B, d, 2l)
    return Y

3. Full 2-layer forward pass:

X0: (B, d, m)          # feature processing output
X1 = dhen_layer(X0)    # (B, d, 2l) -- projection needed if 2l != m
X2 = dhen_layer(X1)    # (B, d, 2l) -- identity shortcut if dims match
flat = reshape(X2, (B, d*2l))
logits = MLP(flat)     # (B, 1)
p_hat = sigmoid(logits)  # (B,)
# Projection required: at layer 1 shortcut (if 2l != m);
# layer 2 shortcut is identity if output dim of layer 1 = 2l.

3. Feature Interaction Modules

Each interaction module \(\operatorname{Interaction}_i\) takes \(X_n \in \mathbb{R}^{d \times m}\) as input and produces a list of embeddings \(u \in \mathbb{R}^{d \times l}\), where \(l\) is the output embedding count (potentially different from \(m\)). When a module instead outputs a single tensor \(v \in \mathbb{R}^{1 \times h}\) (as in MLP-style modules), a projection \(W_m \in \mathbb{R}^{h \times (d \cdot l)}\) maps it to the embedding list format.

3.1 AdvancedDLRM

AdvancedDLRM is a DLRM-style interaction module (the in-house production baseline at Meta). Given input embeddings \(X_n\), the module computes pairwise dot-product interactions among all embedding pairs, concatenates them with dense features, and passes the result through MLP layers. Formally:

\[u = W_m \cdot \operatorname{AdvancedDLRM}(X_n) \tag{3}\]

The internal DLRM interaction step computes all inner products \(\langle x_i, x_j \rangle\) for \(i \leq j\), producing an explicit second-order feature crossing. The subsequent MLP layers lift this to effectively higher-order implicit interactions.

[!SUCCESS]- Solution 2 Key insight: The squared-norm identity converts the \(O(m^2)\) sum over pairs into a single \(O(m)\) accumulation by exploiting the bilinearity of the inner product.

Sketch:

1. Expand \(\|\sum_i x_i v_i\|^2 = \sum_i x_i^2 \|v_i\|^2 + 2\sum_{i < j} x_i x_j \langle v_i, v_j \rangle\). Rearranging gives the identity. The right-hand side requires one pass to compute \(s = \sum_i x_i v_i\) (\(O(md)\)), one pass for \(\sum_i x_i^2 \|v_i\|^2\) (\(O(md)\)), and one norm (\(O(d)\)): total \(O(md)\) vs. the naive \(O(m^2 d)\).

2. For \(x_i \in \{0,1\}\), \(x_i^2 = x_i\), so the identity becomes \(\sum_{i < j, i,j \in \mathcal{A}} \langle v_i, v_j \rangle = \frac{1}{2}[\|\sum_{i \in \mathcal{A}} v_i\|^2 - \sum_{i \in \mathcal{A}} \|v_i\|^2]\). This is exactly “sum active embeddings, square, subtract self-norms,” recovering DLRM’s sum-pooling interaction.

3. The FM trick output is \(\sum_{i<j} s_{ij} = \frac{1}{2}[\|\sum x_i v_i\|^2 - \sum x_i^2 \|v_i\|^2]\), which is a fixed linear combination of \(\{s_{ij}\}\) with all coefficients 1. Retaining the full vector \((s_{ij})_{i<j} \in \mathbb{R}^{\binom{m}{2}}\) and applying an MLP allows learning any function \(f: \mathbb{R}^{\binom{m}{2}} \to \mathbb{R}\), a strictly richer function class.

3.2 Self-Attention

concepts/attention-mechanisms/standard-attention|Self-attention, the core of Transformer encoders, was introduced to CTR tasks in AutoInt and InterHAt. For DHEN, the module applies a standard Transformer encoder layer:

\[u = W \cdot \operatorname{TransformerEncoderLayer}(X_n) \tag{4}\]

where \(W \in \mathbb{R}^{m \times l}\) projects the output to the shared embedding list dimension.

The Transformer encoder layer computes multi-head scaled dot-product attention:

\[\operatorname{Attn}(Q, K, V) = \operatorname{softmax}\!\left(\frac{QK^\top}{\sqrt{d_k}}\right) V\]

with \(Q = X_n W^Q\), \(K = X_n W^K\), \(V = X_n W^V\). This captures feature-wise interactions: the attention weights \(A_{ij} = \operatorname{softmax}(\cdot)_{ij}\) indicate how much feature \(i\) attends to feature \(j\), enabling adaptive, content-dependent interaction modeling.

[!SUCCESS]- Solution 3 Key insight: The attention weight \(A_{ij}\) is a softmax-normalized inner product of projected features, making the output a rational function of the input — not a polynomial — which puts attention outside the expressive class of any DCN with finite depth.

Sketch:

1. \(A_{ij} = \frac{\exp(q_i k_j^\top / \sqrt{d_k})}{\sum_{j'} \exp(q_i k_{j'}^\top / \sqrt{d_k})}\) where \(q_i = x_i W^Q\) and \(k_j = x_j W^K\). Each \(q_i k_j^\top = x_i W^Q (W^K)^\top x_j^\top\) is a scalar quadratic in the input, making \(A_{ij}\) a ratio of exponentials of quadratics in \(\{x_j\}\).

2. \(z_i = \sum_j A_{ij} x_j W^V\) is a convex combination (weights sum to 1) of value vectors. The weights \(A_{ij}\) depend on all inputs \(\{x_{j'}\}\) through the softmax denominator, making \(z_i\) a non-polynomial rational function of the entire input matrix \(X\).

3. DCN computes \(u = W(XX^\top) + b\) where entry \((i,j)\) of \(XX^\top\) is \(\langle x_i, x_j \rangle = \sum_r x_i[r] x_j[r]\) — a sum over all \(d\) embedding dimensions. Attention computes \(q_i k_j^\top = \sum_r (x_i W^Q)_r (x_j W^K)_r\) — a sum in the projected subspace of dimension \(d_k < d\). DCN’s interaction weight is a fixed bilinear form in the full embedding space; attention’s is a learned bilinear form in a lower-dimensional subspace, but made adaptive via softmax normalization.

3.3 Deep Cross Net

Deep Cross Net (DCN, Wang et al. 2017) introduces a cross network that efficiently learns bounded-degree feature interactions. In DHEN’s formulation:

\[u = W \cdot (X_n X_n^\top) + b \tag{7}\]

where \(W\) and \(b\) are learned weight and bias matrices. This can be understood as a bilinear transformation over the outer product \(X_n X_n^\top \in \mathbb{R}^{m \times m}\), which encodes all pairwise embedding interactions. The paper notes that the skip connection from the original DCN paper is omitted since DHEN already provides skip connections via the \(\operatorname{ShortCut}\) mechanism at the layer level.

The key distinction from self-attention is that DCN operates at the bit-level interaction level (individual scalar dimensions within embedding vectors), whereas self-attention operates at the feature-level interaction level (entire embedding vectors as units).

[!SUCCESS]- Solution 4 Key insight: Each cross step multiplies the current iterate by the scalar \(x_\ell^\top w_\ell\), raising the polynomial degree by exactly 1, so the degree grows linearly with layer count and is tight.

Sketch:

1. Base case: \(x_1 = x_0(x_0^\top w_0) + b_0 + x_0\); the term \(x_0(x_0^\top w_0)\) has degree 2 in \(x_0\) components. Inductive step: \(x_{\ell+1} = x_0(x_\ell^\top w_\ell) + b_\ell + x_\ell\). The product \(x_0 \cdot (x_\ell^\top w_\ell)\) multiplies degree-1 (\(x_0\)) by degree-\(\ell\) (\(x_\ell^\top w_\ell\)), giving degree \(\ell+1\). The term \(x_\ell\) has degree \(\ell\). So \(\deg(x_{\ell+1}) = \ell + 1\).

2. For degree \(\ell+2\) to appear in \(x_{\ell+1}\), we would need \(\deg(x_0) \cdot \deg(x_\ell^\top w_\ell) \geq \ell + 2\), i.e., \(1 \cdot \ell \geq \ell+1\), which is false. So the upper bound \(\ell+1\) is tight.

3. Within a single DCN module (fixed anchor \(x_0\)), each cross layer adds 1 to the degree — additive growth. Across DHEN layers, the anchor updates to the previous output, turning additive growth into multiplicative: degree \(L+1\) output from layer \(n\) becomes the degree-\((L+1)\) anchor for layer \(n+1\), whose \(L\) cross ops give degree \((L+1)+(L+1)\cdot L = (L+1)^2\). Induction: \(D_1 = L+1\), \(D_{N+1} = D_N\cdot(L+1)\), so \(D_N = (L+1)^N\). A plain depth-\(NL\) DCN achieves degree \(NL+1\). Since \((L+1)^N \gg NL+1\) for \(N, L \geq 2\), hierarchical stacking yields super-linear degree growth.

[!SUCCESS]- Solution 5 Key insight: The rank-1 update structure \(J_\ell = I + x_0 w_\ell^\top\) follows directly from differentiating the cross recurrence, and the Sherman-Morrison formula then gives the inverse and singular-value structure in closed form.

Sketch:

1. \(x_{\ell+1} = x_0(x_\ell^\top w_\ell) + b_\ell + x_\ell\). Differentiating with respect to \(x_\ell\): \(\frac{\partial x_{\ell+1}}{\partial x_\ell} = x_0 w_\ell^\top + I\). This is exactly \(J_\ell = I + x_0 w_\ell^\top\).

2. Matrix determinant lemma: \(\det(I + uv^\top) = 1 + v^\top u\). So \(\det(J_\ell) = 1 + w_\ell^\top x_0\); \(J_\ell\) is invertible iff \(w_\ell^\top x_0 \neq -1\). By Sherman-Morrison: \(J_\ell^{-1} = I - \frac{x_0 w_\ell^\top}{1 + w_\ell^\top x_0}\).

3. \(J_\ell = I + x_0 w_\ell^\top\) is a rank-1 perturbation of the identity. All singular vectors orthogonal to both \(x_0\) and \(w_\ell\) have singular value 1. The remaining two-dimensional subspace has singular values \(\approx 1 \pm \|x_0\|\|w_\ell\|\) (to first order). Since all singular values are \(O(1)\) for bounded weights, the cross layer cannot cause exponential gradient explosion or vanishing.

[!SUCCESS]- Solution 6 Key insight: DCN’s scalar \(x^\top w\) scales the entire vector \(x_0\) uniformly (bit-level: all embedding dimensions get the same multiplicative update), while attention’s \(A_{ij}\) scales entire feature vectors \(x_j\) (feature-level: all embedding dimensions of feature \(j\) are weighted together).

Sketch:

1. DCN cross: \(x_{\ell+1}[r] = x_0[r] \cdot (x_\ell^\top w) + x_\ell[r]\) for all dimensions \(r\). The scalar \(x_\ell^\top w = \sum_s x_\ell[s] w[s]\) mixes all dimensions \(s\) of \(x_\ell\) into one number, then this single number multiplies every dimension \(r\) of \(x_0\). In bilinear form: \(x_0^\top M x\) with \(M = w \mathbf{1}^\top\) (rank 1, same row for all output dimensions).

2. Attention: \([z_i]_r = \sum_j A_{ij} \sum_s x_j[s] W^V[s,r]\). The embedding dimension mixing \(\sum_s x_j[s] W^V[s,r]\) is governed by \(W^V\) and is the same for every feature \(j\); the per-feature weighting \(A_{ij}\) does not mix embedding dimensions. So attention weights whole feature vectors, not individual scalars.

3. DCN can represent: “global importance weighting” — scaling all output dimensions by the same feature cross score. Attention cannot do this in a single layer (it must use \(W^V\) uniformly). Attention can represent: “select a specific feature subset based on content” (e.g., \(A_{ij} \approx 1\) for one \(j\) and 0 elsewhere), which DCN cannot do (DCN’s output is always a function of \(x_0\) scaled by a global scalar). These examples confirm the modules are incomparable and complementary.

[!SUCCESS]- Solution 7 Key insight: The low-rank factorization \(W_\ell = U_\ell V_\ell^\top\) reduces the dominant \(O(d^2)\) matrix-vector product to two sequential \(O(dr)\) projections, cutting cost by factor \(d/r\) while preserving the rank-\(r\) interaction subspace.

Sketch:

1. Full cross layer pseudocode:

def cross_layer_full(x0, xl, W, b):
    # W: (d, d), x0, xl, b: (d,)
    s = W @ xl          # O(d^2) -- dominant cost
    s = s + b           # O(d)
    out = x0 * s        # O(d)  element-wise
    out = out + xl      # O(d)  residual
    return out          # shape: (d,)

Dominant FLOP cost: \(O(d^2)\) for the matrix-vector product.

2. Low-rank cross layer:

def cross_layer_lowrank(x0, xl, U, V, b):
    # U, V: (d, r), r << d
    t = V.T @ xl        # O(dr): project to rank-r subspace
    t = U @ t           # O(dr): project back to d-dim
    t = t + b           # O(d)
    out = x0 * t        # O(d)
    out = out + xl      # O(d)
    return out          # shape: (d,)

Total: \(O(dr)\) vs. \(O(d^2)\); speedup factor \(d/r\).

3. Full DCN module in DHEN:

def dcn_module(Xn, x0_flat, cross_layers, Wm):
    # Xn: (d, m), x0_flat = flatten(Xn): (md,)
    # cross_layers: list of L (U_l, V_l, b_l) tuples
    # Wm: (md, d*l) projection back to embedding list
    xl = x0_flat                            # (md,)
    for (U_l, V_l, b_l) in cross_layers:   # L iterations
        xl = cross_layer_lowrank(x0_flat, xl, U_l, V_l, b_l)
    u_flat = Wm.T @ xl                      # (d*l,): O(md * dl)
    u = reshape(u_flat, (d, l))             # (d, l)
    return u
# Parameters: {U_l in R^{md x r}, V_l in R^{md x r}, b_l in R^{md}} x L; Wm in R^{md x dl}

3.4 Linear

The linear module simply applies a learned projection to the input embeddings:

\[u = W \cdot X_n \tag{6}\]

where \(W \in \mathbb{R}^{m \times l}\) is the linear weight. This module captures raw information from the original feature embeddings without any non-linearity or explicit interaction, serving as an information-preserving bypass within the ensemble. Despite its simplicity, the ablation study shows it is highly effective as a partner module in hierarchical ensembles.

3.5 Convolution

Convolutional layers, standard in vision and used in NLP (Conformer) and CTR (Liu et al. 2019), are adapted here as:

\[u = W \cdot \operatorname{Conv2d}(X_n) \tag{5}\]

where \(W \in \mathbb{R}^{m \times l}\) re-projects the convolution output. The input \(X_n \in \mathbb{R}^{d \times m}\) is treated as a 2D signal (embedding dimension \(d\) as one axis, feature count \(m\) as the other). Conv2d applies local receptive field filters over this 2D arrangement, capturing local co-occurrence patterns among neighboring features in the embedding matrix layout.

[!SUCCESS]- Solution 8 Key insight: Conv2d applied to the embedding matrix \(X_n \in \mathbb{R}^{d \times m}\) captures local correlations among neighboring features and adjacent embedding dimensions, with parameter count independent of \(m\) (unlike attention), making it efficient when the number of features is large.

Sketch:

1. A \((k_d, k_m)\) filter computes \(\text{out}[r,s] = \sum_{p=0}^{k_d-1}\sum_{q=0}^{k_m-1} w_{pq} X_n[r+p, s+q]\), a weighted sum of a \(k_d \times k_m\) patch. This mixes embedding dimensions \(r, \ldots, r+k_d-1\) with feature slots \(s, \ldots, s+k_m-1\) jointly in the same filter computation.

2. Locality assumption: features at adjacent columns of \(X_n\) have correlated interaction patterns. This holds when features are ordered by semantic similarity or by co-occurrence frequency. Maximally valid ordering: place highly correlated feature groups (e.g., same entity type: all user features together, all ad features together) in contiguous columns. If features are randomly ordered, the locality assumption is violated and convolution degrades toward a global interaction.

3. Conv2d parameters: \(k_d \times k_m \times C_\text{in} \times C_\text{out}\) — independent of \(m\) and \(d\) (assuming \(k_d, k_m \ll d, m\)). Self-attention parameters: \(3d \cdot d_k \cdot h\) (for \(Q, K, V\) projections, \(h\) heads) + \(d_v h \cdot d\) (output projection) — also independent of \(m\). Both scale quadratically with \(d\) and linearly with head count/channel count, but convolution scales with filter size not sequence length. For very large \(m\), the key difference is computational: attention costs \(O(m^2 d_k)\) per forward pass, convolution costs \(O(m d k_m k_d)\) — convolution is linear in \(m\) while attention is quadratic.

4. Hierarchical Ensemble

4.1 Ensemble Aggregation

At each DHEN layer, the \(k\) interaction modules are applied in parallel to the same input \(X_n\), producing outputs \(\{u_1, u_2, \ldots, u_k\}\) where \(u_i \in \mathbb{R}^{d \times l}\). The aggregation function \(\operatorname{Ensemble}_{i=1}^{k}\) combines these into a single embedding matrix before the shortcut addition and normalization. The paper considers three aggregation strategies:

• Concatenation: \(\operatorname{Ensemble}(u_1, \ldots, u_k) = [u_1 \| u_2 \| \cdots \| u_k] \in \mathbb{R}^{d \times (kl)}\)
• Sum: \(\operatorname{Ensemble}(u_1, \ldots, u_k) = \sum_{i=1}^{k} u_i \in \mathbb{R}^{d \times l}\)
• Weighted sum: \(\operatorname{Ensemble}(u_1, \ldots, u_k) = \sum_{i=1}^{k} \alpha_i u_i\) with learned scalars \(\alpha_i\)

The choice of aggregation determines how information from different modules is fused before being passed to the next layer.

[!SUCCESS]- Solution 9 Key insight: Ensemble variance equals the average pairwise covariance of module predictions; uncorrelated modules reduce variance by \(1/k\), and lower inter-module correlation (the non-overlapping information hypothesis) is directly what drives variance reduction.

Sketch:

1. \(\hat{y}_\text{ens} = \frac{1}{k}\sum_i \hat{y}_i\). \(\mathbb{E}[(y - \hat{y}_\text{ens})^2] = \mathbb{E}[(y - \frac{1}{k}\sum_i \hat{y}_i)^2]\). Expand: \(= \mathbb{E}[y^2] - \frac{2}{k}\sum_i \mathbb{E}[y \hat{y}_i] + \frac{1}{k^2}\sum_{i,j}\mathbb{E}[\hat{y}_i \hat{y}_j]\). Recognizing that \(\mathbb{E}[\hat{y}_i \hat{y}_j] = \operatorname{Cov}(\hat{y}_i, \hat{y}_j) + \mathbb{E}[\hat{y}_i]\mathbb{E}[\hat{y}_j]\) and collecting terms gives the stated form.

2. With \(\operatorname{Cov}(\hat{y}_i, \hat{y}_j) = 0\) for \(i \neq j\) and \(\operatorname{Var}(\hat{y}_i) = V\): ensemble variance \(= V/k\). For negative correlation \(\rho < 0\), the cross-terms decrease the ensemble variance further; for \(\rho = 1\) (identical predictions), ensemble variance \(= V\) (no reduction).

3. \(\operatorname{Cov}(\hat{y}_i, \hat{y}_j) = \rho V\) for \(i \neq j\). Ensemble variance \(= \frac{1}{k^2}[kV + k(k-1)\rho V] = V\frac{1 + (k-1)\rho}{k}\). For \(\rho=0.5\), \(k=2\): variance ratio \(= \frac{1 + 0.5}{2} = 0.75\). So the ensemble has 75% the variance of a single module — consistent with the ablation showing attention+linear outperforms either alone by combining two modules with complementary predictions.

4.2 Residual Shortcut and Dimension Matching

Equation (2) defines the shortcut as a conditional operation. When the ensemble output and input \(X_n\) have matching embedding counts (\(\operatorname{len}(X_n) = \operatorname{len}(Y)\)), the shortcut is an identity: \(\operatorname{ShortCut}(X_n) = X_n\). This is analogous to the standard ResNet shortcut and ensures that gradient flow is not blocked by depth.

When dimensions mismatch (e.g., after concatenation aggregation increases the embedding count), a learned linear projection \(W_n \in \mathbb{R}^{\operatorname{len}(X_n) \times \operatorname{len}(Y)}\) is applied. This is analogous to the 1x1 convolution projection shortcut in ResNet.

[!SUCCESS]- Solution 10 Key insight: The identity shortcut means \(\frac{\partial X_{n+1}}{\partial X_n} = I + J_n\), so the product of Jacobians across all layers always contains the identity path (\(S = \emptyset\) term) which by itself transmits the full gradient signal from output to input.

Sketch:

1. \(\frac{\partial X_{n+1}}{\partial X_n} = \frac{\partial}{\partial X_n}[F_n(X_n) + X_n] = J_n + I\).

2. \(\prod_{n=0}^{N-1}(I + J_n) = \sum_{S \subseteq [N]} \prod_{n \in S} J_n\) holds when expanding the product by choosing either \(I\) or \(J_n\) at each factor (valid for any matrices, not just commuting ones — the sum over subsets exactly enumerates all \(2^N\) choices). The \(S = \emptyset\) term is \(I\), contributing \(\frac{\partial \mathcal{L}}{\partial X_N}\) directly to \(\frac{\partial \mathcal{L}}{\partial X_0}\).

3. LayerNorm Jacobian: \(\frac{\partial \operatorname{Norm}(z)}{\partial z} = \frac{1}{\sigma}P_\perp\) where \(P_\perp = I - \frac{1}{d}\mathbf{1}\mathbf{1}^\top - \hat{z}\hat{z}^\top\) projects out the mean and \(\hat{z}\) directions. This has \(d-2\) nonzero eigenvalues equal to \(1/\sigma\). The identity shortcut bypasses LayerNorm, so the \(S = \emptyset\) path still carries the full gradient even when LayerNorm attenuates the ensemble-path contribution.

[!SUCCESS]- Solution 11 Key insight: For contractive maps (\(\|J_n\|_\text{op} < 1\)), the plain stack gradient decays as \(\sigma^N \to 0\). The \(S=\emptyset\) term (identity path) always contributes exactly \(\partial\mathcal{L}/\partial X_N\) to the upstream gradient — residual connections prevent complete gradient vanishing by ensuring a non-zero additive contribution, even if other terms cancel.

Sketch:

1. \(\|\prod_{n=0}^{N-1} J_n\|_F \leq \prod_n \|J_n\|_\text{op} \leq \sigma^N\). So \(\|\frac{\partial \mathcal{L}}{\partial X_0}\|_F \leq \sigma^N \|\frac{\partial \mathcal{L}}{\partial X_N}\|_F \to 0\) as \(N \to \infty\).

2. The \(S = \emptyset\) term in the residual expansion is \(I\), so it contributes exactly \(\frac{\partial \mathcal{L}}{\partial X_N}\) to \(\frac{\partial \mathcal{L}}{\partial X_0}\). Whenever \(\frac{\partial \mathcal{L}}{\partial X_N} \neq 0\), this additive contribution is non-zero, so \(\frac{\partial \mathcal{L}}{\partial X_0}\) cannot identically vanish even when all \(J_n\) are contractive. Note: the other terms in the sum (with \(S \neq \emptyset\)) can partially cancel this contribution, so this does NOT establish \(\|\frac{\partial \mathcal{L}}{\partial X_0}\|_F \geq \|\frac{\partial \mathcal{L}}{\partial X_N}\|_F\) in general — the correct claim is weaker: the identity path prevents complete gradient vanishing.

3. \(\sigma^8 = 0.9^8 \approx 0.43\). So a plain 8-layer stack attenuates gradients to 43% of their original magnitude; 22-layer stacks give \(0.9^{22} \approx 0.098\) (10% attenuation). With residual shortcuts the gradient from the identity path remains at 100%, explaining why DHEN can train stably at \(N = 8\) and the paper’s HSDP experiments push to \(N = 22+\).

[!SUCCESS]- Solution 12 Key insight: Concatenation aggregation always triggers the projection shortcut (unless \(kl = m\) by coincidence), requiring \(ml \cdot k\) parameters, while sum aggregation only triggers projection when \(l \neq m\), and the projection has \(ml\) parameters — a \(k\)-fold difference.

Sketch:

1. Concatenation output: \([u_1 \| \cdots \| u_k] \in \mathbb{R}^{d \times kl}\). Input: \(X_n \in \mathbb{R}^{d \times m}\). Mismatch when \(kl \neq m\). Projection \(W_n \in \mathbb{R}^{m \times kl}\) has \(m \cdot kl\) parameters.

2. Sum output: \(\sum_i u_i \in \mathbb{R}^{d \times l}\). Identity shortcut possible when \(l = m\). When \(l \neq m\), projection \(W_n \in \mathbb{R}^{m \times l}\) has \(ml\) parameters (factor \(k\) fewer than concatenation case).

3. When concatenation grows the embedding count (\(kl > m\)): the shortcut projects \(\mathbb{R}^m \to \mathbb{R}^{kl}\), mapping a lower-dimensional input to a higher-dimensional ensemble space — an information expansion (the shortcut creates new embedding slots). ResNet’s 1x1 projection shortcut maps between same-dimension feature maps (identity case) or reduces depth in bottleneck blocks. The DHEN expansion shortcut is most analogous to the ResNet learned projection used to match channel dimensions when stride-2 downsampling changes spatial size — both add parameters to handle dimension changes, not to compress information.

4.3 Stacking and Mixture of High-Order Interactions

The critical insight of DHEN is that stacking \(N\) hierarchical ensemble layers produces an exponentially rich mixture of high-order interactions. For a two-layer, two-module example with modules \(I_1\) and \(I_2\), the second layer processes embeddings that are already themselves outputs of module compositions. The second layer then computes, among others:

\[I_1(I_1(X_0)), \quad I_1(I_2(X_0)), \quad I_2(I_1(X_0)), \quad I_2(I_2(X_0))\]

(all mixed together via the ensemble). Thus DHEN is capable of capturing interactions of the form “interaction type \(A\) applied to the output of interaction type \(B\),” which is qualitatively different from what any homogeneous stack can produce. With \(k\) module types and \(N\) layers, the number of distinct interaction compositions grows as \(k^N\), giving DHEN combinatorial expressivity over the space of module sequences.

Formally, the full DHEN forward pass (for a \(N\)-layer model) can be written as:

\[X_{n+1} = \text{Norm}\!\left(\operatorname{Ensemble}_{i=1}^{k} \operatorname{Interaction}_i(X_n) + \operatorname{ShortCut}(X_n)\right), \quad n = 0, 1, \ldots, N-1\]

The final \(X_N\) is passed to a prediction head (typically an MLP followed by sigmoid) to produce \(\hat{p}(\text{click})\).

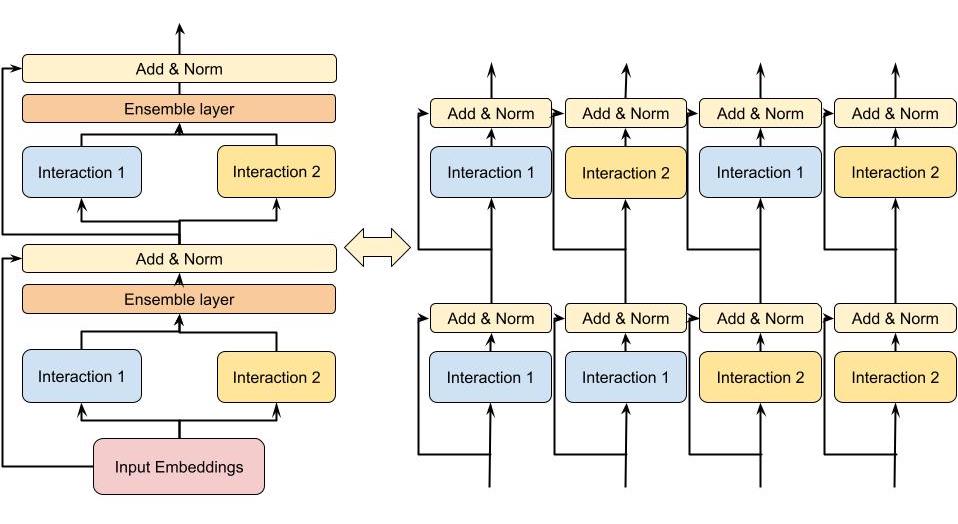

Figure 2 (Zhang et al., 2022): A two-layer, two-module DHEN (left) and its expanded interaction graph (right). The second layer’s modules operate on composed outputs of first-layer modules, yielding all four compositions \(I_1(I_1(X_0))\), \(I_1(I_2(X_0))\), \(I_2(I_1(X_0))\), \(I_2(I_2(X_0))\) — illustrating how DHEN achieves combinatorial expressivity over interaction compositions.

[!SUCCESS]- Solution 13 Key insight: In a \(k\)-module, \(N\)-layer DHEN, each of the \(k^N\) length-\(N\) sequences of module choices corresponds to a distinct functional composition, and sum aggregation mixes them in a fixed linear combination while concatenation aggregation exposes them individually to the next layer.

Sketch:

1. \(X_1 = I_1(X_0) + I_2(X_0) + X_0\) (with shortcut). \(X_2 = I_1(X_1) + I_2(X_1) + X_1\). Substituting: \(X_2 = I_1(I_1(X_0)+I_2(X_0)+X_0) + I_2(I_1(X_0)+I_2(X_0)+X_0) + I_1(X_0)+I_2(X_0)+X_0\). The distinct composition terms are \(I_1 \circ I_1\), \(I_1 \circ I_2\), \(I_2 \circ I_1\), \(I_2 \circ I_2\) plus lower-order terms: 4 distinct pairwise compositions plus \(I_1, I_2\), identity = 7 terms total (more if shortcut interactions count separately).

2. With concatenation: \(X_1 = [I_1(X_0) \| I_2(X_0)]\) presents both module outputs as distinct channels. When \(I_1\) at layer 2 receives \(X_1\), it jointly processes both \(I_1(X_0)\) and \(I_2(X_0)\) as separate features — it can learn to weight them differently. With sum, \(I_1\) at layer 2 sees only \(I_1(X_0) + I_2(X_0)\) and cannot distinguish which part came from which module.

3. By induction: with \(k\) modules and sum aggregation at each layer, layer \(n\)’s output is a sum of all \(k^n\) distinct \(n\)-deep compositions. The count multiplies by \(k\) each time we add a layer: \(k^N\) distinct paths. A homogeneous stack with 1 module type produces only the single composition \(I^N\) at depth \(N\). For \(k=5\), \(N=4\): \(5^4 = 625\) distinct composition paths.

5. Relation to Prior Work

The two architecturally closest predecessors are GIN and AutoInt:

• AutoInt uses a multi-branch structure, but each branch within a layer is the same attention module type (multi-head, not multi-type). It also requires two-stage training (pre-train then fine-tune).
• GIN similarly uses multi-head attention and requires a second re-training stage to prune unimportant interactions.

DHEN’s key differentiators: (1) genuinely heterogeneous modules per layer, not just multiple heads of the same module; (2) fully end-to-end single-stage training; (3) the hierarchical stacking that allows each module at layer \(n+1\) to operate on the composed outputs of all modules at layer \(n\).

6. Training and System Details

DHEN’s deeper, multi-layer structure increases parameter count, activation memory, and FLOPs substantially beyond what any single-server system can handle. The training infrastructure is built on the ZionEX system (Mudigere et al. 2021).

6.1 Distributed Training Strategy

The deployment unit is a supernode (pod) of 16 hosts, each with 8 A100 GPUs connected via NVLink (600 GB/s intra-host). Hosts within a pod communicate at up to 200 GB/s (RoCEv2, shared across 8 GPUs). A single pod thus contains 128 A100 GPUs, 5 TB HBM, and 40 PF/s BF16 compute.

The hybrid training paradigm:

1. Sparse embedding tables are distributed across the pod using model parallel sharding. Oversized tables are column-sharded, and shards are load-balanced via the LPT (Longest Processing Time First) algorithm using an empirical cost function that captures both compute and communication overhead.
2. Dense DHEN layers are replicated on each GPU and trained with data parallel (DP) training. The choice of DP for dense layers reflects that activation sizes can far exceed weight sizes, so it is cheaper to synchronize weights (allreduce) than to send activations across the network.
3. Each training batch thus follows: DP forward (dense) → model-parallel embedding lookup → DP forward/backward (dense DHEN layers) → allreduce gradients for dense weights.

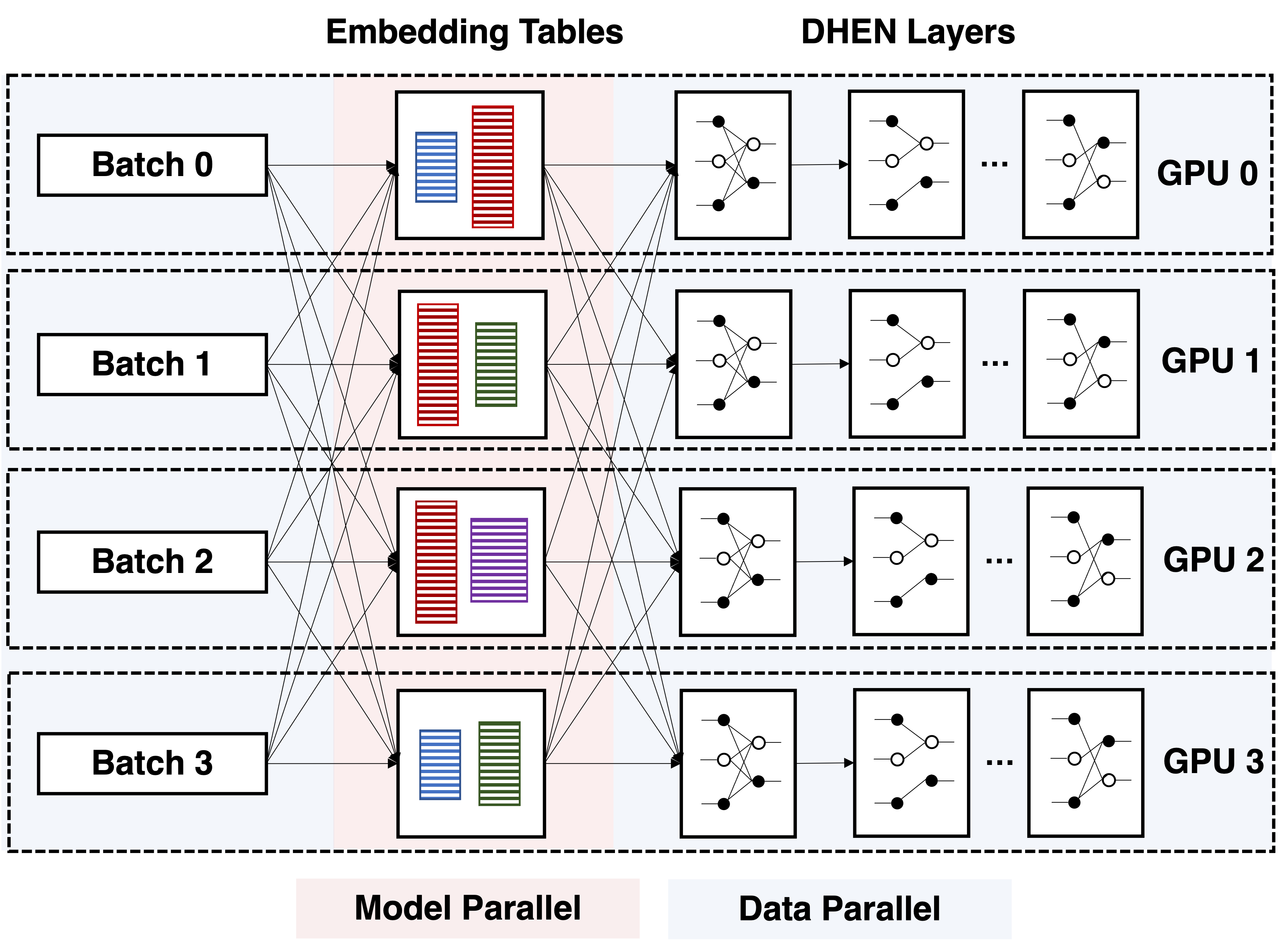

Figure 4 (Zhang et al., 2022): The hybrid distributed training strategy for DHEN (shown for 4 GPUs). Embedding tables are model-parallel across the pod; dense DHEN layers are replicated on each GPU and trained with data parallelism, with allreduce for gradient synchronization.

6.2 Fully Sharded Data Parallel

Standard DP imposes a ceiling on model size equal to per-GPU HBM capacity. To go beyond, the authors use fully sharded data parallel (FSDP) (FairScale / DeepSpeed ZeRO). FSDP shards model weights across all GPUs, materializing each layer’s weights via allgather on the forward/backward critical path, then immediately discarding them. Additional memory techniques: activation checkpointing (recompute activations in backward), CPU offloading (parameters/gradients stored in CPU RAM, fetched to GPU just before use).

However, at production scale (hundreds of GPUs), naive FSDP is inefficient because the allgather on the critical path must span all GPUs in the cluster. Each shard becomes very small, making it impossible to saturate network bandwidth; the resulting latency dominates.

6.3 Hybrid Sharded Data Parallel

The paper proposes hybrid sharded data parallel (HSDP), co-designed with DHEN’s architecture and the ZionEX cluster topology. HSDP exploits the 24x bandwidth asymmetry between NVLink (600 GB/s) and RoCEv2 (25 GB/s):

1. Intra-host sharding: HSDP shards the entire dense model across GPUs within a single host. All allgather and reducescatter operations during the forward and backward passes operate exclusively over NVLink at full bandwidth.
2. Cross-host gradient synchronization: After the intra-host reducescatter completes in the backward pass, HSDP registers a backward hook to launch asynchronous allreduce operations across hosts (one per GPU-local-ID group). Each allreduce averages gradients for the local shard across all hosts with the same intra-host position.
3. The async allreduce overlaps with the computation of subsequent backward pass layers, hiding its latency.

HSDP tradeoffs vs. FSDP: - Benefit: allgather latency on the critical path is reduced dramatically (NVLink vs. RoCE); communication collectives scale with number of hosts, not number of GPUs globally. - Cost: Supports models up to \(8\times\) (GPUs per host) the size of pure DP, not arbitrarily large; adds 1.125x communication overhead in bytes due to the additional allreduce, though this is hidden by pipelining.

In practice, small-to-medium DHENs use HSDP; very large DHENs fall back to FSDP.

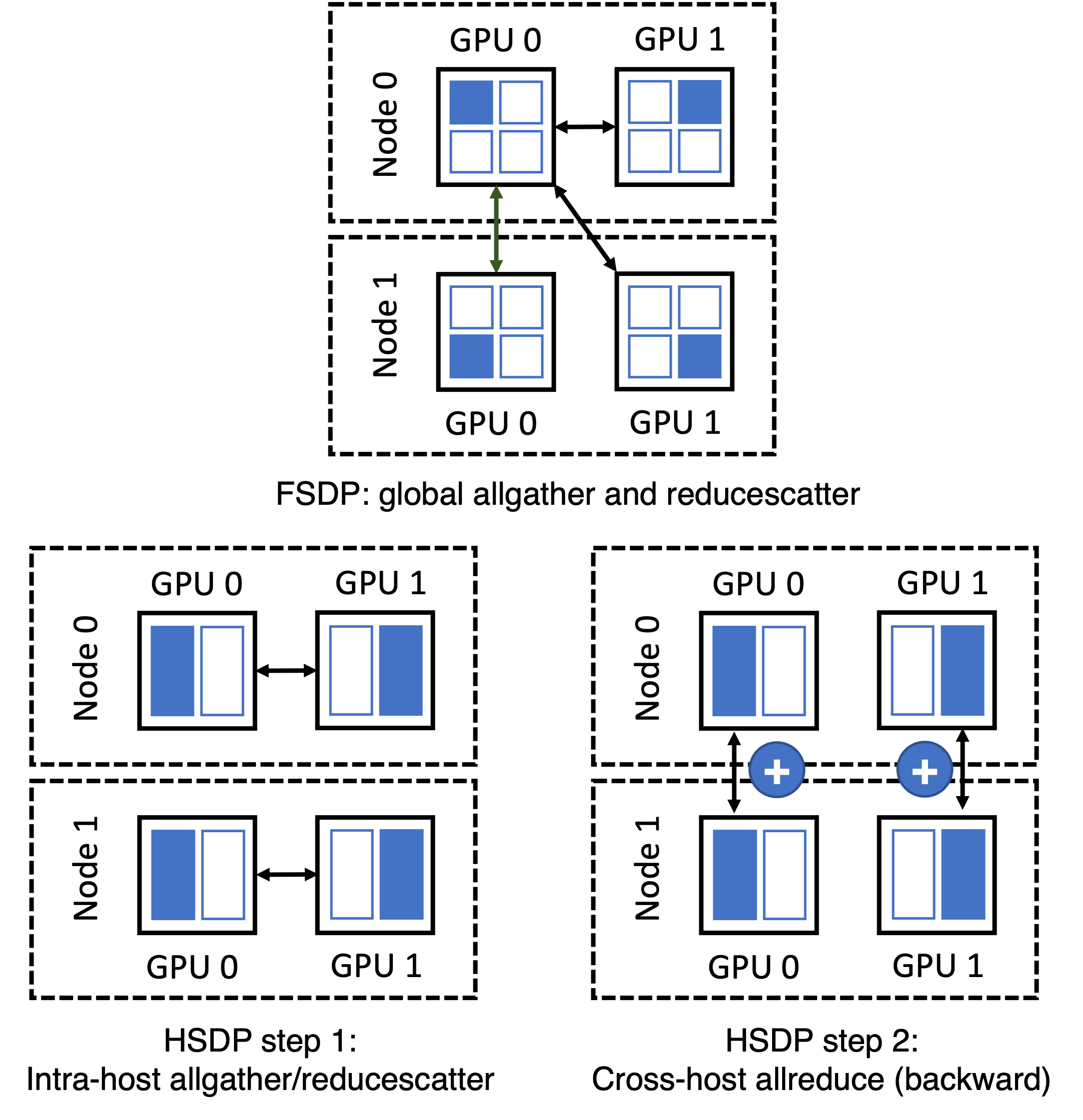

Figure 5 (Zhang et al., 2022): FSDP (top) vs. HSDP (bottom) shown for 2 hosts with 2 GPUs each. In FSDP, allgather must span all GPUs cluster-wide over slow RoCEv2. In HSDP, allgather is confined to NVLink-connected GPUs within a single host; cross-host gradient averaging is done asynchronously via allreduce over RoCEv2, overlapped with backward computation.

[!SUCCESS]- Solution 14 Key insight: HSDP moves the allgather from the slow cross-host network (RoCEv2) to the fast intra-host network (NVLink), reducing critical-path communication latency by the bandwidth ratio \(B_\text{NV}/B_\text{net} \approx 24\).

Sketch:

1. FSDP allgather: each GPU must receive all \(GH - 1\) other shards, each of size \(P/(GH)\) bytes, for a total of \((GH-1) \cdot P/(GH) \approx P\) bytes per GPU. The bottleneck is the cross-host RoCEv2 links (capacity \(B_\text{net}\) per GPU). So \(L_\text{FSDP} \approx P / B_\text{net}\).

2. HSDP allgather: confined to \(G\) GPUs within one host over NVLink. Each GPU receives \(G-1\) shards each of size \(P/G\), totalling \((G-1) \cdot P/G \approx P\) bytes, communicated at \(B_\text{NV}\). So \(L_\text{HSDP} \approx P/B_\text{NV}\). Ratio: \(L_\text{FSDP}/L_\text{HSDP} = B_\text{NV}/B_\text{net} \approx 24\).

3. Peak memory per GPU:

• DP: \(sP\) (full parameters + optimizer state) + activations. Total: \(sP + \text{activations}\).
• FSDP: \(sP/(GH)\) (sharded parameters + optimizer state) + one layer’s unsharded weights (materialized during allgather): \(\approx sP/(GH) + P_\text{layer}\). In practice \(\approx sP/(GH)\) amortized.
• HSDP: \(sP/G\) (parameters sharded across \(G\) intra-host GPUs) + gradient buffer for async allreduce: \(P/G\) extra. Total: \((s+1)P/G\).
• HSDP requires \((s+1)P/G\) vs. FSDP’s \(sP/(GH)\): HSDP stores \(H(s+1)/s\) times more than FSDP, traded for \(24\times\) lower critical-path latency.

[!SUCCESS]- Solution 15 Key insight: HSDP restricts the critical-path allgather to fast NVLink (intra-host), then asynchronously allreduces gradient shards across hosts over slow RoCEv2, overlapping the network communication with computation of earlier backward layers.

Sketch:

1. HSDP data structures:

# Each GPU (host h, local rank g) holds:
#   param_shard[g]: P/G parameters (its local shard of all dense DHEN weights)
#   grad_shard[g]:  P/G gradient buffer (for async cross-host allreduce)
#   full_params:    P parameters (materialized during forward via allgather; freed after use)
# No parameters are replicated across hosts; all are uniquely held by one GPU per host.

2. HSDP forward pass for one layer:

def hsdp_forward_layer(layer_idx, input_activation):
    # Step 1: allgather weight shards from G GPUs on same host (NVLink -- critical path)
    full_weights = intra_host_allgather(param_shard[local_rank])
    # full_weights: P/num_layers parameters for this layer, shape (d_out, d_in)
    # Bandwidth: B_NV; latency: ~P_layer / B_NV

    # Step 2: forward computation with full weights
    output = layer_forward(input_activation, full_weights)

    # Step 3: free full_weights (not stored; recomputed in backward if activation ckpt)
    del full_weights

    return output

3. HSDP backward pass:

def hsdp_backward_layer(layer_idx, grad_output):
    # Step 1: re-allgather weights (or use activation checkpointing recompute)
    full_weights = intra_host_allgather(param_shard[local_rank])  # NVLink

    # Step 2: compute gradients
    grad_input = layer_backward_input(grad_output, full_weights)
    grad_weight = layer_backward_weight(grad_output, saved_input)  # (P_layer,)

    # Step 3: intra-host reducescatter: each GPU accumulates its shard of grad_weight
    grad_shard_local = intra_host_reducescatter(grad_weight)  # NVLink, critical path

    # Step 4: register async allreduce across hosts (RoCEv2, OFF critical path)
    async_handle = allreduce_async(grad_shard_local, group=same_local_rank_across_hosts)
    pending_allreduces.append(async_handle)

    # Step 5: continue backward (allreduce overlaps with next layer's backward)
    return grad_input

# Before optimizer step: synchronize all pending allreduces
for handle in pending_allreduces:
    handle.wait()
optimizer.step()  # grad_shard now contains globally averaged gradient

6.4 Common Optimizations

• Large-batch training: reduces synchronization frequency.
• FP16 embeddings with stochastic rounding: halves embedding memory with numerically stable updates.
• BF16 optimizer: leverages BF16’s larger dynamic range for stability.
• Quantized AllReduce and AllToAll: reduces communication bandwidth by sending compressed gradients and embedding updates; leverages Tensor Cores.

7. Experiments

7.1 Setup

All experiments use a proprietary large-scale industrial CTR dataset (not publicly released). Features include hundreds of sparse (categorical) features and thousands of dense (numerical) features. The metric throughout is normalized entropy (NE) loss, defined as the binary cross-entropy normalized by the entropy of the empirical click rate:

\[\text{NE} = \frac{-\frac{1}{n}\sum_{i=1}^{n} [y_i \log \hat{p}_i + (1-y_i)\log(1-\hat{p}_i)]}{-(p \log p + (1-p)\log(1-p))}\]

where \(p\) is the dataset’s empirical click-through rate. Lower NE is better; NE differences are reported as relative improvements over the AdvancedDLRM baseline.

[!SUCCESS]- Solution 16 Key insight: NE normalizes binary cross-entropy by the entropy of the marginal click rate, so NE = 1 exactly when the model’s conditional predictions add zero mutual information over the base rate predictor.

Sketch:

1. Numerator of NE: \(-\frac{1}{n}\sum_i[y_i \log p + (1-y_i)\log(1-p)]\). Since \(\frac{1}{n}\sum_i y_i = p\): this equals \(-(p \log p + (1-p)\log(1-p)) = H(p)\). Denominator is \(H(p)\). So \(\text{NE} = H(p)/H(p) = 1\).

2. Cross-entropy decomposes as \(H(\hat{p}, y) = H(p) + D_\text{KL}(p_\text{data} \| p_\theta) + \text{calibration gap}\) (standard result from information theory). Dividing by \(H(p)\) gives \(\text{NE} = 1 + (D_\text{KL} + \text{calib. gap})/H(p)\). Thus \(\text{NE} < 1\) iff \(D_\text{KL} + \text{calib. gap} < 0\), which is impossible for a calibrated model — actually \(\text{NE} < 1\) iff \(D_\text{KL} > 0\) and calibration gap is handled correctly, meaning the model genuinely discriminates labels.

3. \(\text{NE} = 1\) exactly when \(\hat{p}_i = p\) for all \(i\) (from part a), equivalently when the model’s predictions are independent of all input features. This is the condition \(I(y; \hat{p} \mid \text{context}) = 0\): predictions carry zero information about labels beyond the marginal.

[!SUCCESS]- Solution 17 Key insight: Replace \(\log \sigma(s)\) with \(-\operatorname{softplus}(-s)\) to avoid numerical underflow near 0/1; then allreduce only scalar sums (CE sum and label sum) to compute NE in \(O(1)\) communication volume regardless of local batch size.

Sketch:

1. Each worker \(w\) computes local sums \((S_y^{(w)}, S_n^{(w)}) = (\sum_\text{local} y_i, n/W)\). AllReduce-sum gives \(S_y = \sum_w S_y^{(w)}\) and \(n = \sum_w S_n^{(w)}\). Then \(p = S_y / n\). This requires a single AllReduce of 2 scalars.

2. For logit \(s_i\) with \(\hat{p}_i = \sigma(s_i)\): \(\log \hat{p}_i = \log \sigma(s_i) = -\log(1 + e^{-s_i}) = -\operatorname{softplus}(-s_i)\) \(\log(1-\hat{p}_i) = \log(1 - \sigma(s_i)) = -\log(1 + e^{s_i}) = -\operatorname{softplus}(s_i)\) CE\((y_i, s_i) = \operatorname{softplus}(s_i) - y_i \cdot s_i\) (numerically stable for all \(s_i\)).

3. Complete pseudocode:

def distributed_NE(local_logits, local_labels, n_global):
    # local_logits, local_labels: (n_local,)
    local_ce = softplus(local_logits) - local_labels * local_logits  # (n_local,)
    local_ce_sum = sum(local_ce)            # scalar
    local_label_sum = sum(local_labels)     # scalar

    # AllReduce: sum CE and label counts across all workers
    global_ce_sum = allreduce_sum(local_ce_sum)    # 1 scalar communicated
    global_label_sum = allreduce_sum(local_label_sum)  # 1 scalar communicated

    p = global_label_sum / n_global                # empirical CTR
    H_p = -(p * log(p) + (1-p) * log(1-p))        # NE denominator (nats)
    numerator = global_ce_sum / n_global            # mean cross-entropy
    return numerator / H_p                          # NE

7.2 Interaction Module Ablation

The ablation studies in Table 1 (paper) evaluate the hierarchical ensemble over DCN, self-attention, CNN, and linear modules using 5 stacked layers (\(N=5\)). Key findings:

(Negative NE diff = improvement over DCN baseline.)

Key observations:

• Linear alone outperforms DCN at all training checkpoints, suggesting that in this feature space, preserving raw embedding information is more valuable than explicit cross-network interactions.
• Self-attention alone converges slowly — it requires more data to realize its benefit (barely improving at 20B, hurting at 35B without ensemble).
• Hierarchical ensemble of self-attention + linear is the best configuration: better than either alone, and achieves -1.576% NE at 35B. The ensemble stabilizes self-attention’s convergence by coupling it with the fast-converging linear module.
• Not all ensembles are beneficial: DCN + Linear underperforms linear alone, and self-attention + CNN underperforms self-attention + linear. This confirms that the non-overlapping information hypothesis is necessary but not sufficient — module complementarity depends on the specific dataset.

[!SUCCESS]- Solution 18 Key insight: The shared gradient \(\frac{\partial \mathcal{L}}{\partial Y}\) becomes smoother when the linear module provides an accurate baseline prediction early in training, reducing gradient variance and allowing the attention module to learn from a cleaner signal.

Sketch:

1. With \(Y = I_\text{attn}(X) + I_\text{lin}(X) + \text{ShortCut}(X)\), the gradient to each module is \(\frac{\partial \mathcal{L}}{\partial I_j(X)} = \frac{\partial \mathcal{L}}{\partial Y}\) (same for all modules by chain rule). The variance of \(\frac{\partial \mathcal{L}}{\partial Y}\) is lower when \(Y\) is a better predictor (lower loss residuals). Since \(I_\text{lin}\) contributes a reasonable early-training prediction, the ensemble \(Y\) is closer to the truth than \(I_\text{attn}(X)\) alone, reducing \(\operatorname{Var}(\frac{\partial \mathcal{L}}{\partial Y})\).

2. At initialization with small \(W^V\): \(I_\text{attn}(X) \approx 0\) (uniform attention gives \(z_i \approx \frac{1}{m}\sum_j x_j W^V \approx 0\)). Near-identity linear: \(I_\text{lin}(X) \approx X\). So \(Y \approx X + \text{ShortCut}(X) \approx 2X\), a reasonable baseline. The gradient to \(\theta_\text{attn}\) starts from a meaningful signal.

3. ResNet analogy: at initialization, ResNet behaves like a shallow network because \(F_n \approx 0\) (small random init) and \(X_{n+1} \approx X_n\). The effective depth gradually increases as \(F_n\) learns. DHEN analogously behaves like “linear module + shortcut = identity” at init; attention gradually becomes non-trivial. Formal correspondence: DHEN’s \(I_\text{lin}\) plays the role of ResNet’s identity shortcut; DHEN’s \(I_\text{attn}\) plays the role of ResNet’s residual branch \(F_n\).

[!SUCCESS]- Solution 19 Key insight: In production feature spaces with pre-computed crosses already present in the input embeddings, DCN recomputes information already in the input (feature redundancy), while its bilinear coupling also creates ill-conditioned gradients for sparse embeddings (optimization landscape).

Sketch:

1. If \(X_0\) contains embedding entries corresponding to feature pairs \((i,j)\) — i.e., \(X_0 = [v_1, \ldots, v_m, v_{12}, v_{13}, \ldots]\) with \(v_{ij}\) a pre-computed cross embedding — then DCN’s degree-2 term \(x_0(x_0^\top w) \in \text{span}(x_0)\), and cross terms in \(x_0^\top w\) are linear combinations of the already-available \(v_{ij}\) entries. DCN adds nothing not already in \(\text{span}(X_0)\), while the linear module \(WX_0\) accesses all of \(\text{span}(X_0)\) directly.

2. Hessian of loss w.r.t. \(w_\ell\): \(\frac{\partial^2 \mathcal{L}}{\partial w_\ell^2} \propto x_0 x_0^\top\). The condition number of this Hessian is \(\|x_0\|^2 / \lambda_\text{min}(x_0 x_0^\top)\). For sparse embeddings, \(x_0\) varies across features (some near zero, some large), making the effective Hessian highly ill-conditioned. The linear module’s Hessian is \(X_0 X_0^\top\) (a full-rank matrix in expectation), better conditioned.

3. DCN would outperform linear when: features are raw one-hot encodings with no pre-computed crosses; the corpus is small enough that the crossed features have not appeared frequently enough to be estimated well; and the optimizer is heavily regularized (forcing the linear module toward near-zero weights while DCN can still learn the explicit crossing via \(x_0 x_0^\top w\)).

7.3 DHEN vs. AdvancedDLRM

Table 2 (paper) compares DHEN stacks of varying depth \(N \in \{1, 2, 4, 8\}\) against the AdvancedDLRM baseline (using AdvancedDLRM + Linear as the module pair):

All DHEN configurations outperform the baseline. Deeper models achieve larger NE improvement, and crucially, the gap widens with more training data — suggesting that DHEN’s ability to capture higher-order interactions and module correlations requires more samples to manifest, but yields durable gains. The 8-layer DHEN achieves -0.273% NE at 25B examples, reaching the reported -0.27% NE improvement over AdvancedDLRM with additional data.

[!SUCCESS]- Solution 20 Key insight: For a perfectly calibrated model, the NE equals \(1 - I(y;\hat{p})/H(p)\), so NE improvement directly measures the gain in normalized mutual information between predictions and labels.

Sketch:

1. For a perfectly calibrated model, the calibration gap is zero. The cross-entropy decomposition gives \(H(\hat{p}, y) = H(p) - I(y; \hat{p})\) (using \(H(y \mid \hat{p}) = H(y) - I(y;\hat{p})\) and calibration meaning \(H(y|\hat{p}_\theta) = H(\hat{p}_\theta)\)). Dividing by \(H(p)\): \(\text{NE} = 1 - I(y;\hat{p})/H(p)\).

2. \(\text{NE}_1 - \text{NE}_2 = (1 - I_1/H(p)) - (1 - I_2/H(p)) = (I_2 - I_1)/H(p)\), directly the normalized mutual information gain.

3. \(H(0.05) = -(0.05 \ln 0.05 + 0.95 \ln 0.95) \approx 0.199\) nats. DHEN’s 0.27% NE improvement corresponds to \(\Delta I = 0.0027 \times 0.199 \approx 0.000537\) nats of additional mutual information. This is a small absolute gain, but relative to the information-theoretic ceiling \(H(p) = 0.199\) nats, it represents about 0.27% of the maximum achievable gain — meaningful at the scale of industrial CTR systems.

7.4 Scaling Efficiency vs. Mixture of Experts

Table 3 (paper) benchmarks DHEN depth-scaling against concepts/mixture-of-experts/note|MoE-based MLP scaling, both on top of AdvancedDLRM:

At matched or lower FLOP budgets, DHEN consistently outperforms MoE. MoE scales the MLP layers wider by routing to expert sub-networks but remains within a single interaction paradigm (dense MLP). DHEN’s heterogeneous module stacking yields strictly better return on FLOPs.

[!SUCCESS]- Solution 21 Key insight: MoE uses sparsity (each example sees one expert) to amortize capacity across sub-populations; DHEN uses density (each example sees all modules) to maximize interaction diversity per example — these are complementary strategies suited to different data distributions.

Sketch:

1. MoE top-1 routing: expected FLOPs per example \(= F_\text{expert}\) (only one expert is active). DHEN: FLOPs per example \(= k \cdot F_\text{module}\). At matched total FLOPs budget \(F\): MoE can instantiate \(E = F / F_\text{expert}\) experts (with each example seeing \(F_\text{expert}\) FLOPs); DHEN can instantiate \(k = F / F_\text{module}\) modules (each example sees all \(k\) modules for \(k \cdot F_\text{module} = F\) FLOPs). MoE adds capacity (\(E\) distinct functions); DHEN adds diversity (all \(k\) functions applied per example).

2. Formal scenario: suppose \(p(\text{data}) = \sum_e \pi_e p_e(\text{data})\) with \(E\) sub-populations, each with optimal predictor \(f_e^*\) satisfying \(\|f_e^* - \sum_j \alpha_j f_j^*\|^2 > \epsilon > 0\) for all \(\alpha \in \Delta^E\) (\(f_e^*\) are not convex combinations of each other). Then no fixed ensemble of \(\{f_e^*\}\) achieves the per-sub-population optimal; only routing (MoE) does.

3. For \(E=2\), \(k=2\) (DCN + Linear): MoE-DHEN routes each example to one expert; that expert runs DCN + Linear ensemble. Per-example interaction paths: 2 (one per expert’s DCN and Linear). Shared parameters: gating network \(g\). Expert-specific parameters: all DCN and Linear weights within each expert. Total distinct paths: \(2 \times 2 = 4\) per routing decision, vs. DHEN’s \(2^N\) across layers.

[!SUCCESS]- Solution 22 Key insight: MoE-DHEN separates routing specialization (the gating network selects which expert’s interaction structure to apply) from interaction diversity (each expert’s DHEN ensemble applies multiple module types), combining both benefits at the cost of \(E \times\) the parameter count of a single DHEN.

Sketch:

1. Architecture specification:

# Shared: gating network g: R^{d x m} -> Delta^E
#   g(Xn) = softmax(W_gate * flatten(Xn))  -- W_gate: (E, dm), shared
# Expert-specific (for e = 1..E):
#   DHEN_e: k interaction modules {I_1^e, ..., I_k^e} with their own weights
#   Each module: DCN weights {U_l^e, V_l^e, b_l^e} or Linear weights W_lin^e
# No sharing of interaction module weights across experts.

2. Forward pass (top-1 routing):

def moe_dhen_layer(Xn, gate, experts):
    # Xn: (B, d, m)
    scores = gate(flatten(Xn))              # (B, E): gating logits
    expert_idx = argmax(scores, dim=1)      # (B,): top-1 selection

    output = zeros_like(Xn)
    for e in range(E):
        mask = (expert_idx == e)            # (B,) boolean
        if mask.any():
            Xn_e = Xn[mask]                # (B_e, d, m): routed sub-batch
            u_dcn  = experts[e].dcn(Xn_e)  # (B_e, d, l)
            u_lin  = experts[e].linear(Xn_e)  # (B_e, d, l)
            u_ens  = concat([u_dcn, u_lin], dim=-1)  # (B_e, d, 2l)
            output[mask] = u_ens + shortcut(Xn_e)    # residual
    return LayerNorm(output)                # (B, d, 2l)

3. FLOPs and parameter analysis:

• FLOPs per example (top-1): \(F_\text{gate} + k \cdot F_\text{module}\) (one expert’s ensemble + gating). Same compute as single DHEN + gating overhead.
• Total parameters: \(P_\text{gate} + E \cdot k \cdot P_\text{module}\) (each expert has its own \(k\) modules). \(E\) times more than plain DHEN.
• vs. plain DHEN (\(k\) modules, no MoE): MoE-DHEN has \(E \times\) more parameters for the same per-example FLOPs.
• vs. plain MoE (\(E\) experts, 1 module each): MoE-DHEN has \(k\) times more per-example compute (all \(k\) modules run within chosen expert) and same parameter count if each MoE expert \(\equiv\) one module. MoE-DHEN dominates plain MoE when interaction diversity per example matters; MoE-DHEN dominates plain DHEN when sub-population specialization matters.

7.5 Training Throughput

On a 256-GPU cluster, experiments with an 8-layer DHEN using DP yield 1.08x end-to-end speedup from: FP16 embedding + AMP + quantized BF16 allreduce + quantized AllToAll. The remaining bottleneck is optimizer cost and AllToAll latency not fully overlapped with dense layer compute.

For depth beyond 22 layers, DP fails (OOM). HSDP supports larger models than DP and achieves up to 1.2x throughput over FSDP for the same model size. FSDP supports arbitrary depth but with high allgather latency on the critical path across all cluster GPUs; HSDP restricts allgather to NVLink within a single host, eliminating the RoCEv2 bottleneck.

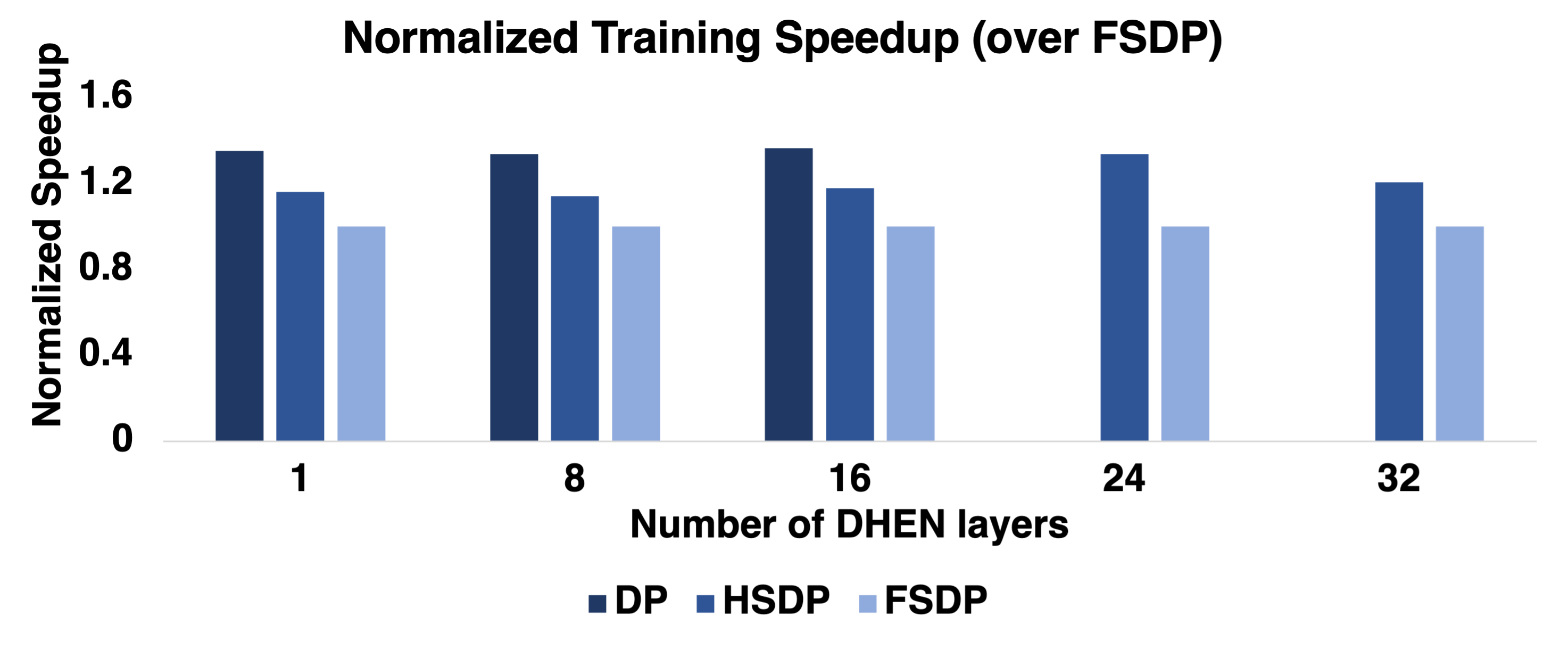

Figure 6 (Zhang et al., 2022): Training throughput comparison across DP, FSDP, and HSDP at varying DHEN layer counts on a 256-GPU cluster. DP succeeds only up to 22 layers (OOM beyond); HSDP consistently achieves up to 1.2x the throughput of FSDP by replacing cluster-wide allgather with fast intra-host NVLink allgather.

8. References
