1. The KV Cache Overhead Problem

📐 In autoregressive transformer decoding, the attention output at step \(n\) is

\[o_n = \sum_{i \in [n]} \text{Score}(i) \cdot v_i, \qquad \text{Score} := \text{softmax}\bigl([\langle q_n, k_1\rangle, \ldots, \langle q_n, k_n\rangle]\bigr).\]

To avoid recomputing all keys and values from scratch, the model caches \(\{k_i, v_i\}_{i \in [n]}\) — the KV cache. For long contexts this cache dominates GPU memory.

The natural fix is quantization: store each FP16/BF16 number in fewer bits. But every existing method (KIVI, KVQuant, etc.) groups coordinates into blocks and stores a zero point and scale per block. Depending on block size, this metadata adds ≈1–2 extra bits per quantized value, nearly doubling the apparent saving.

QJL sidesteps metadata entirely by replacing the classical quantizer with a sketching operation whose output distribution is analytically known from the design of the sketch.

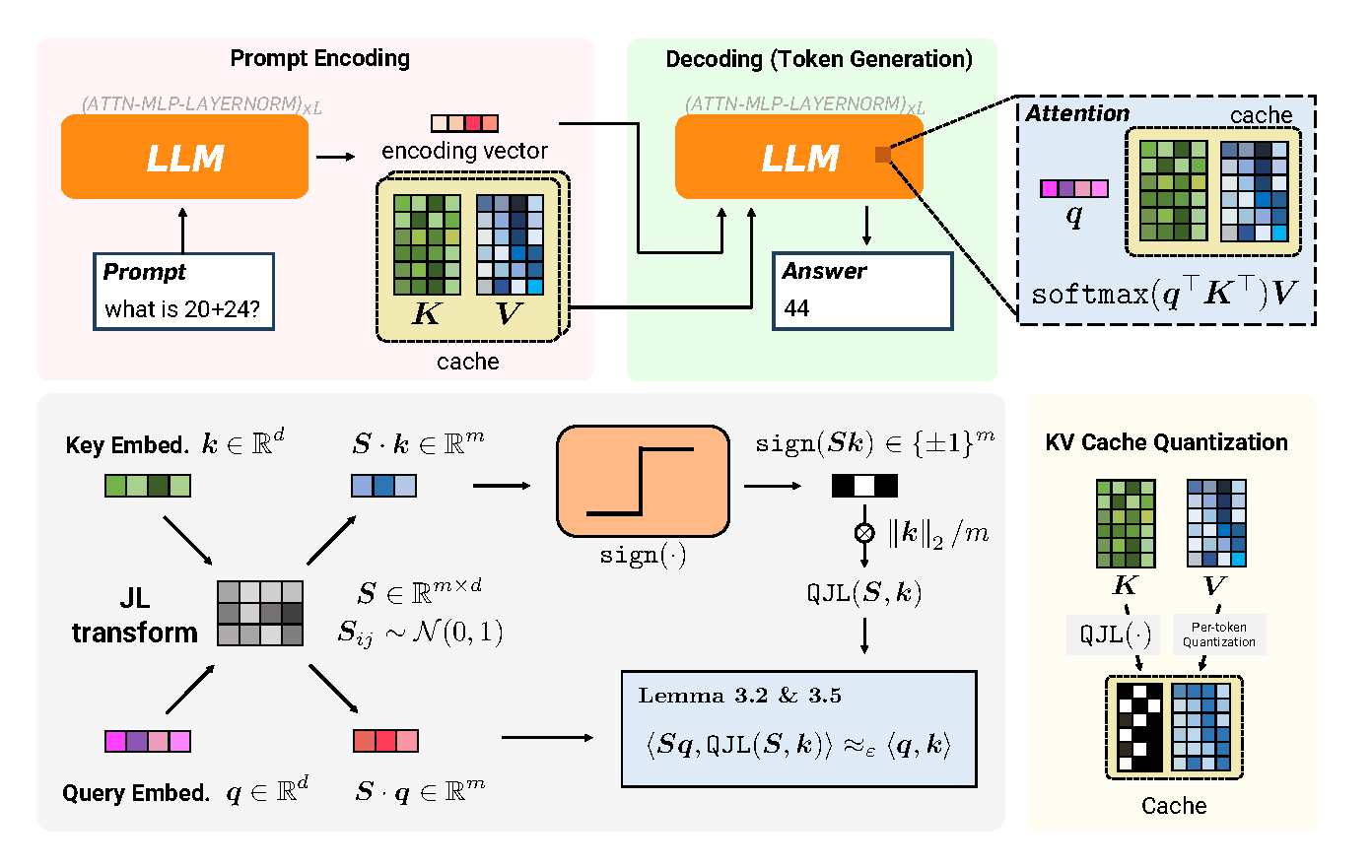

Figure 1 (Zandieh et al., 2024): The QJL pipeline. During prompt encoding (left), key embeddings are projected via a random JL matrix S, sign-quantized to 1 bit, and cached together with the scalar norm. During token generation (right), the query is projected by the same S and its inner product with each cached sign vector is computed, yielding an unbiased estimate of the full-precision attention score — with no stored quantization constants.

2. The QJL Transform

2.1 Definition

🔑 Definition (QJL and inner product estimator). For positive integers \(d, m\), let \(S \in \mathbb{R}^{m \times d}\) be a JL matrix with i.i.d. entries \(S_{ij} \sim \mathcal{N}(0, 1)\). The Quantized JL (QJL) transform is

\[H_S(k) := \operatorname{sign}(Sk) \in \{-1, +1\}^m.\]

For any pair \(q, k \in \mathbb{R}^d\), the asymmetric inner product estimator is

\[\operatorname{ProdQJL}(q, k) := \frac{\sqrt{\pi/2}}{m} \cdot \|k\|_2 \cdot \langle Sq,\; H_S(k)\rangle.\]

2.2 Unbiasedness (Lemma 3.2)

Lemma (Inner product estimator ProdQJL is unbiased). For any \(q, k \in \mathbb{R}^d\),

\[\mathbb{E}_S[\operatorname{ProdQJL}(q, k)] = \langle q, k\rangle.\]

📐 Proof sketch. Decompose \(q = \frac{\langle q,k\rangle}{\|k\|_2^2} k + q^{\perp k}\) where \(\langle q^{\perp k}, k\rangle = 0\). Then

\[\operatorname{ProdQJL}(q,k) = \frac{\sqrt{\pi/2}}{m} \sum_{i \in [m]} \Bigl[\frac{\langle q,k\rangle}{\|k\|_2} |s_i^\top k| + \|k\|_2 \cdot s_i^\top q^{\perp k} \cdot \operatorname{sign}(s_i^\top k)\Bigr].\]

Each \(s_i\) is a standard Gaussian row. Because \(k \perp q^{\perp k}\), the projections \(s_i^\top k\) and \(s_i^\top q^{\perp k}\) are independent Gaussians (Fact: jointly Gaussian, uncorrelated ⟹ independent). Therefore the cross term vanishes: \(\mathbb{E}[s_i^\top q^{\perp k} \cdot \operatorname{sign}(s_i^\top k)] = 0\).

For the first term, \(x := s_i^\top k \sim \mathcal{N}(0, \|k\|_2^2)\), so \(\mathbb{E}[|x|] = \sqrt{2/\pi}\,\|k\|_2\) by the half-normal formula. Substituting:

\[\mathbb{E}[\operatorname{ProdQJL}(q,k)] = \sqrt{\pi/2} \cdot \frac{\langle q,k\rangle}{\|k\|_2} \cdot \sqrt{2/\pi}\,\|k\|_2 = \langle q,k\rangle. \quad \square\]

[!TIP]- Key contrast with the standard JL estimator The standard JL estimator \(\frac{1}{m}\langle Sq, Sk\rangle\) is also unbiased for \(\langle q,k\rangle\) (the JL lemma). QJL replaces \(Sk \in \mathbb{R}^m\) (32 bits per entry) with \(\operatorname{sign}(Sk) \in \{-1,+1\}^m\) (1 bit per entry), at the cost of one stored scalar \(\|k\|_2\) (FP16). The \(\sqrt{\pi/2}\) prefactor corrects for the sign-collapse that shrinks the expected magnitude.

2.3 Distortion Bound (Lemma 3.5)

Lemma (Distortion of ProdQJL). For any \(q, k \in \mathbb{R}^d\), if \(m \geq \frac{4}{3} \cdot \frac{1+\varepsilon}{\varepsilon^2} \log\frac{2}{\delta}\), then

\[\Pr_S\!\bigl[|\operatorname{ProdQJL}(q,k) - \langle q,k\rangle| > \varepsilon\|q\|_2\|k\|_2\bigr] \leq \delta.\]

Proof sketch. Each term \(z_i := \sqrt{\pi/2}\,\|k\|_2 \cdot s_i^\top q \cdot \operatorname{sign}(s_i^\top k)\) is i.i.d. with \(\mathbb{E}[z_i] = \langle q,k\rangle/m\) (by unbiasedness). Its \(\ell\)-th moment obeys \(\mathbb{E}[|z_i|^\ell] = (\pi/2)^{\ell/2} \|k\|_2^\ell \mathbb{E}[|s_i^\top q|^\ell]\). Because \(s_i^\top q \sim \mathcal{N}(0, \|q\|_2^2)\), the moments are \(\sigma^\ell \cdot 2^{\ell/2}\Gamma((\ell+1)/2)/\sqrt{\pi}\). A Bernstein inequality applied to the mean \(\frac{1}{m}\sum z_i\) gives the stated tail bound. Notably, the constants are smaller than those for the unquantized JL estimator.

3. Attention Score Approximation

🔑 Theorem 3.6 (Distortion bound on QJL key cache quantizer). Suppose all key and query embeddings have bounded norm \(\max_i \|k_i\|_2, \|q_n\|_2 \leq r\). If \(m \geq 2r^2\varepsilon^{-2}\log n\), then with probability \(1 - 1/\text{poly}(n)\), simultaneously for all \(i \in [n]\):

\[|\widehat{\text{Score}}(i) - \text{Score}(i)| \leq 3\varepsilon \cdot \text{Score}(i).\]

Proof sketch. By Lemma 3.5 with union bound over \(n\) token pairs, all estimated inner products \(\widehat{qK}(j)\) satisfy \(|\widehat{qK}(j) - \langle q_n, k_j\rangle| \leq \varepsilon\) simultaneously with high probability. Applying the softmax map turns additive errors into \((1 \pm 3\varepsilon)\) multiplicative errors on the scores.

4. Algorithm and Implementation

4.1 Key Cache Quantization Algorithm

# QJL Key Cache Quantizer
def setup(d, m):
    S = np.random.randn(m, d)          # JL matrix, i.i.d. N(0,1)
    Q, _ = np.linalg.qr(S.T)          # orthogonalize rows
    S = Q.T[:m]
    return S

def quantize_key(S, k):
    projected = S @ k                  # shape (m,)
    k_tilde = np.sign(projected)       # 1-bit quantization
    nu = np.linalg.norm(k)             # store only the norm
    return k_tilde, nu                 # (m bits) + (1 FP16)

def estimate_scores(S, q, cache):
    Sq = S @ q                         # m-dim vector, computed once
    scores = []
    for k_tilde, nu in cache:
        inner = np.dot(Sq, k_tilde)    # fast int dot product
        est = (np.sqrt(np.pi / 2) / len(k_tilde)) * nu * inner
        scores.append(est)
    return softmax(np.array(scores))

The key cache stores: \(m\) sign bits + 1 FP16 scalar \(\|k\|_2\) per token. Value cache uses standard token-wise quantization (effective and well-studied separately).

4.2 Practical Considerations

Outlier channels. In deeper layers of LLMs like Llama-2, a small number of fixed channels (≈4 out of 128) have much larger magnitudes than the rest. Because Theorem 3.6’s distortion scales as \(r^2\) (the max embedding norm), these outliers disproportionately increase error. Fix: detect outlier channels during the prefill phase and quantize them with a separate, lower-compression QJL instance.

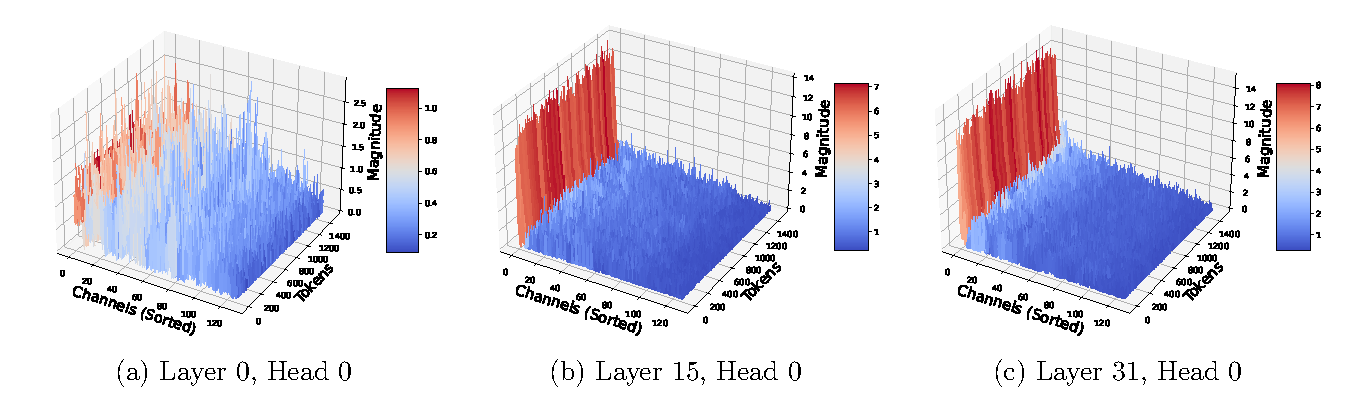

Figure 2 (Zandieh et al., 2024): Key cache entry magnitudes for three representative layers of Llama-2. In the early layer (Layer 0), magnitudes are roughly uniform across channels. By Layer 15 and especially Layer 31, a small number of channels (≈4) exhibit magnitudes orders of magnitude larger than the rest — these are the outlier channels whose large \(r^2\) would inflate QJL’s distortion bound if left unhandled.

Orthogonalizing \(S\). Empirically, QR-decomposing the Gaussian matrix \(S\) (so its rows are orthonormal) almost always improves performance. This is consistent with results on orthogonal random features and super-bit LSH — orthogonality reduces variance.

5. Experiments

Tested on LongBench (long-range QA) and LM-eval (standard benchmarks) with Llama-2-7B and Llama-3-8B.

Key result: QJL at 3 bits matches or exceeds FP16 on most tasks, while KIVI/KVQuant degrade. KVQuant is significantly slower during prompting, while QJL matches FP16 decoding speed and reduces memory by >5×.

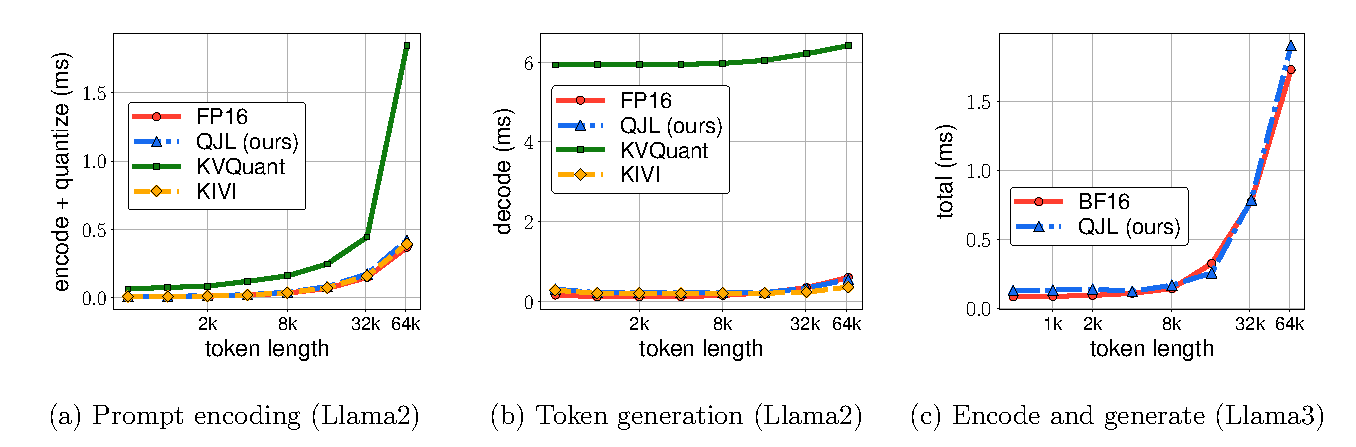

Figure 3 (Zandieh et al., 2024): Wall-clock time (ms) as a function of input sequence length (1k–128k tokens). Left: prompt encoding time — KVQuant is significantly slower due to preprocessing overhead, while QJL and KIVI match FP16. Middle: token generation time — QJL and KIVI are faster than FP16 due to reduced KV cache size; KVQuant is slower. Right: combined encode-and-generate time on Llama3 — QJL achieves at least 5× memory reduction with no runtime overhead.
